RRateLimiter
参考链接
redisson分布式限流 RRateLimiter 源码分析讲一讲平时用的比较多的限流模块-RRateLimiter， - 掘金
Redisson分布式限流器RRateLimiter原理解析 · Issue #13 · oneone1995/blog
redisson 限流器设置过期时间_mob64ca12f51824的技术博客_51CTO博客
简要说明
业务涉及到调用第三方API，但是第三方设置了QPS限制，遂采用RRateLimiter进行API级别的速率限制。
限流器配置及使用
// 限流器创建
String rateLimiterKey = RATE_LIMITER_KEY_PREFIX + apiName;
RRateLimiter rateLimiter = redissonClient.getRateLimiter(rateLimiterKey);
// 设置限流器配置
rateLimiter.trySetRate/setRate(mode, rate, rateInterval, rateIntervalUnit);
// 限流器使用
rateLimiter.tryAcquire/acquire(permits);
rateLimiter.tryAcquire(permits, timeout, unit);- mode：限流器类型；
- rate：产生许可证（permits）的速率，与 rateInterval 配合使用；
- rateInterval：产生许可证的速率间隔；
- rateIntervalUnit：速率时间间隔单位。
使用过程中遇到的问题
问题描述：trySetRate() 函数 「rate 参数」修改后不生效？
// 设置限流器配置
rateLimiter.trySetRate(RateType.OVERALL, rate, rateInterval, rateIntervalUnit);trySetRate() 部分源码**：hsetnx**
@Override
public RFuture<Boolean> trySetRateAsync(RateType type, long rate, long rateInterval, RateIntervalUnit unit) {
return commandExecutor.evalWriteNoRetryAsync(getRawName(), LongCodec.INSTANCE, RedisCommands.EVAL_BOOLEAN,
"redis.call('hsetnx', KEYS[1], 'rate', ARGV[1]);"
+ "redis.call('hsetnx', KEYS[1], 'interval', ARGV[2]);"
+ "return redis.call('hsetnx', KEYS[1], 'type', ARGV[3]);",
Collections.singletonList(getRawName()), rate, unit.toMillis(rateInterval), type.ordinal());
}另一个设置函数：setRate() 函数
rateLimiter.setRate(RateType.OVERALL, rate, rateInterval, rateIntervalUnit);setRate() 部分源码**：hset**
@Override
public RFuture<Void> setRateAsync(RateType type, long rate, long rateInterval, RateIntervalUnit unit) {
return commandExecutor.evalWriteAsync(getRawName(), LongCodec.INSTANCE, RedisCommands.EVAL_BOOLEAN,
"local valueName = KEYS[2];"
+ "local permitsName = KEYS[4];"
+ "if ARGV[3] == '1' then "
+ " valueName = KEYS[3];"
+ " permitsName = KEYS[5];"
+ "end "
+"redis.call('hset', KEYS[1], 'rate', ARGV[1]);"
+ "redis.call('hset', KEYS[1], 'interval', ARGV[2]);"
+ "redis.call('hset', KEYS[1], 'type', ARGV[3]);"
+ "redis.call('del', valueName, permitsName);",
Arrays.asList(getRawName(), getValueName(), getClientValueName(), getPermitsName(), getClientPermitsName()), rate, unit.toMillis(rateInterval), type.ordinal());
}总结：
// 设置限流器配置
// NOTE: 修改配置时, 需要先删除 Redis 中的限流数据配置, 然后重新创建 ！！！(hsetnx)
// 默认创建的键值对过期时间: -1
rateLimiter.trySetRate(RateType.OVERALL, rate, rateInterval, rateIntervalUnit);
// 设置过期时间
// rateLimiter.expire(60, TimeUnit.SECONDS);
// NOTE: 可能删除已分配的许可证, 进而导致请求数超过预期设定！！！(hset & del)
// rateLimiter.setRate(RateType.OVERALL, rate, rateInterval, rateIntervalUnit);钻牛角尖
原先误以为是 令牌桶，使用 Redis 的 Set（哈希） 结构去储存使用情况，结果一看源码才知道错得有点离谱！
Redisson 3.36.0——RRateLimiter

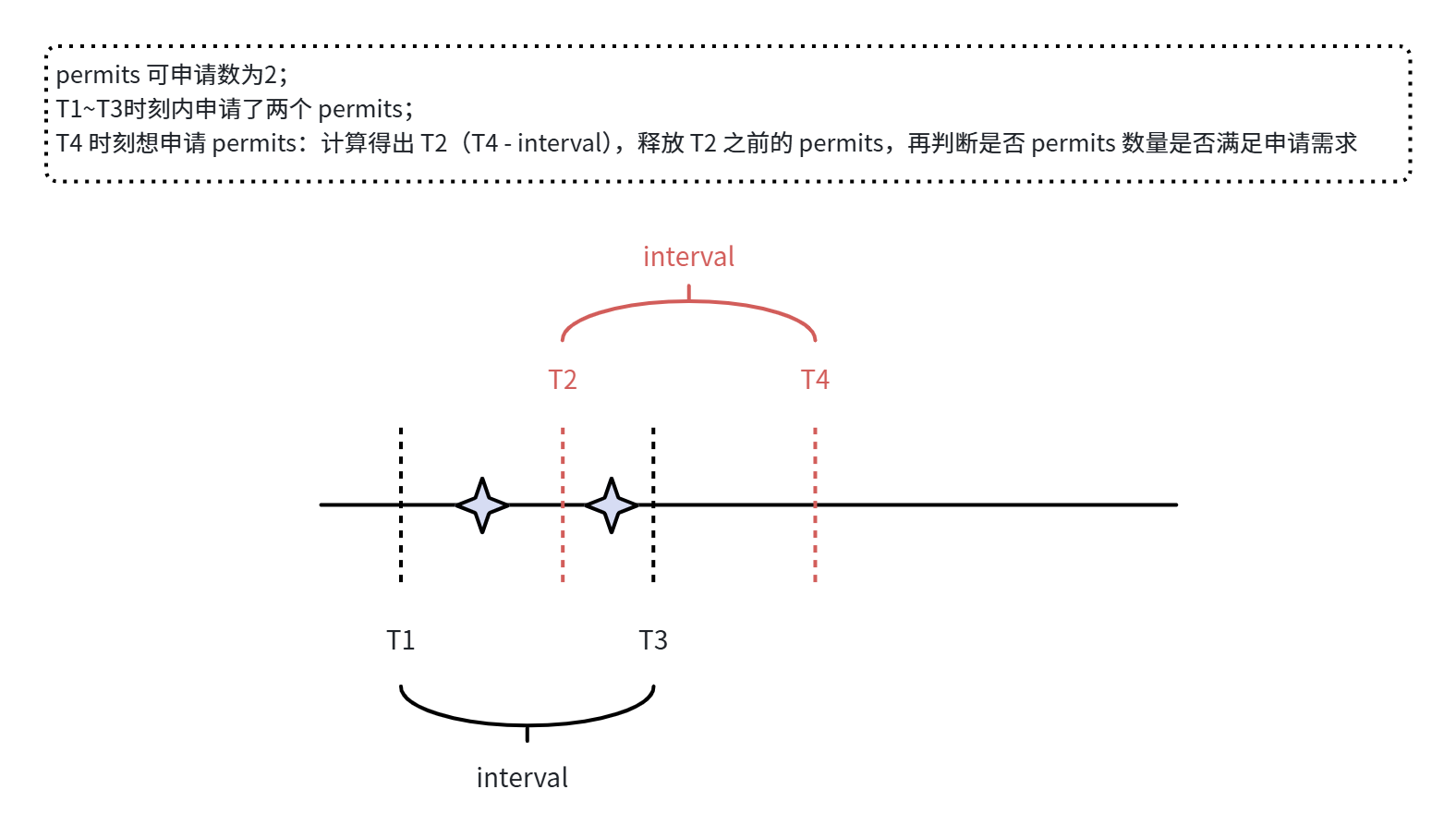

1、底层：滑动窗口；
2、使用 Redis 的 Set、ZSet、String 三种结构来完成限流；
- Set（单机键名：getRawName()） 存储设置的速率 rate、间隔 interval、限流器类型（OVERALL 单机、PER_CLIENT 集群）；
- String（单机键名：getValueName()） 存储 目前还可获取到的许可证数量；
- ZSet（单机键名：getPermitsName()）采用 score 存储 已获取许可证的时间戳，member 存储获取获取许可证的个数；
RRateLimiter#acquire/tryAcquire 涉及到的源码：
private <T> RFuture<T> tryAcquireAsync(RedisCommand<T> command, Long value) {
byte[] random = getServiceManager().generateIdArray();
return commandExecutor.evalWriteAsync(getRawName(), LongCodec.INSTANCE, command,
"local rate = redis.call('hget', KEYS[1], 'rate');"
+ "local interval = redis.call('hget', KEYS[1], 'interval');"
+ "local type = redis.call('hget', KEYS[1], 'type');"
+ "assert(rate ~= false and interval ~= false and type ~= false, 'RateLimiter is not initialized')"
+ "local valueName = KEYS[2];"
+ "local permitsName = KEYS[4];"
+ "if type == '1' then "
+ "valueName = KEYS[3];"
+ "permitsName = KEYS[5];"
+ "end;"
+ "assert(tonumber(rate) >= tonumber(ARGV[1]), 'Requested permits amount cannot exceed defined rate'); "
+ "local currentValue = redis.call('get', valueName); "
+ "local res;"
+ "if currentValue ~= false then "
+ "local expiredValues = redis.call('zrangebyscore', permitsName, 0, tonumber(ARGV[2]) - interval); "
+ "local released = 0; "
+ "for i, v in ipairs(expiredValues) do "
+ "local random, permits = struct.unpack('Bc0I', v);"
+ "released = released + permits;"
+ "end; "
+ "if released > 0 then "
+ "redis.call('zremrangebyscore', permitsName, 0, tonumber(ARGV[2]) - interval); "
+ "if tonumber(currentValue) + released > tonumber(rate) then "
+ "local values = redis.call('zrange', permitsName, 0, -1); "
+ "local used = 0; "
+ "for i, v in ipairs(values) do "
+ "local random, permits = struct.unpack('Bc0I', v);"
+ "used = used + permits;"
+ "end; "
+ "currentValue = tonumber(rate) - used; "
+ "else "
+ "currentValue = tonumber(currentValue) + released; "
+ "end; "
+ "redis.call('set', valueName, currentValue);"
+ "end;"
+ "if tonumber(currentValue) < tonumber(ARGV[1]) then "
+ "local firstValue = redis.call('zrange', permitsName, 0, 0, 'withscores'); "
+ "res = 3 + interval - (tonumber(ARGV[2]) - tonumber(firstValue[2]));"
+ "else "
+ "redis.call('zadd', permitsName, ARGV[2], struct.pack('Bc0I', string.len(ARGV[3]), ARGV[3], ARGV[1])); "
+ "redis.call('decrby', valueName, ARGV[1]); "
+ "res = nil; "
+ "end; "
+ "else "
+ "redis.call('set', valueName, rate); "
+ "redis.call('zadd', permitsName, ARGV[2], struct.pack('Bc0I', string.len(ARGV[3]), ARGV[3], ARGV[1])); "
+ "redis.call('decrby', valueName, ARGV[1]); "
+ "res = nil; "
+ "end;"
+ "local ttl = redis.call('pttl', KEYS[1]); "
+ "if ttl > 0 then "
+ "redis.call('pexpire', valueName, ttl); "
+ "redis.call('pexpire', permitsName, ttl); "
+ "end; "
+ "return res;",
Arrays.asList(getRawName(), getValueName(), getClientValueName(), getPermitsName(), getClientPermitsName()),
value, System.currentTimeMillis(), random);
}Lua 代码提取：
-- Redis限流器Lua脚本
-- KEYS[1]: 限流器配置的键名
-- KEYS[2]: 单机值存储键名
-- KEYS[3]: 集群值存储键名
-- KEYS[4]: 单机许可存储键名
-- KEYS[5]: 集群许可存储键名
-- ARGV[1]: 请求的许可数量
-- ARGV[2]: 当前时间戳
-- ARGV[3]: 随机字节数组
-- 获取限流器配置
local rate = redis.call('hget', KEYS[1], 'rate')
local interval = redis.call('hget', KEYS[1], 'interval')
local type = redis.call('hget', KEYS[1], 'type')
-- 验证限流器是否已初始化
assert(rate ~= false and interval ~= false and type ~= false, 'RateLimiter is not initialized')
-- 根据类型选择相应的键名
local valueName = KEYS[2]
local permitsName = KEYS[4]
if type == '1' then
valueName = KEYS[3]
permitsName = KEYS[5]
end
-- 验证请求的许可数量不能超过定义的速率
assert(tonumber(rate) >= tonumber(ARGV[1]), 'Requested permits amount cannot exceed defined rate')
-- 获取当前值
local currentValue = redis.call('get', valueName)
local res
if currentValue ~= false then
-- 如果当前值存在，处理过期的许可
local expiredValues = redis.call('zrangebyscore', permitsName, 0, tonumber(ARGV[2]) - interval)
local released = 0
-- 计算已释放的许可数量
for i, v in ipairs(expiredValues) do
local random, permits = struct.unpack('Bc0I', v)
released = released + permits
end
if released > 0 then
-- 移除过期的许可记录
redis.call('zremrangebyscore', permitsName, 0, tonumber(ARGV[2]) - interval)
if tonumber(currentValue) + released > tonumber(rate) then
-- 如果释放后超过了速率限制，重新计算当前值
local values = redis.call('zrange', permitsName, 0, -1)
local used = 0
for i, v in ipairs(values) do
local random, permits = struct.unpack('Bc0I', v)
used = used + permits
end
currentValue = tonumber(rate) - used
else
-- 否则直接增加释放的许可数量
currentValue = tonumber(currentValue) + released
end
-- 更新当前值
redis.call('set', valueName, currentValue)
end
-- 检查是否有足够的许可
if tonumber(currentValue) < tonumber(ARGV[1]) then
-- 许可不足，计算需要等待的时间
local firstValue = redis.call('zrange', permitsName, 0, 0, 'withscores')
res = 3 + interval - (tonumber(ARGV[2]) - tonumber(firstValue[2]))
else
-- 许可充足，记录此次使用并减少可用许可
redis.call('zadd', permitsName, ARGV[2], struct.pack('Bc0I', string.len(ARGV[3]), ARGV[3], ARGV[1]))
redis.call('decrby', valueName, ARGV[1])
res = nil
end
else
-- 如果当前值不存在，初始化限流器
redis.call('set', valueName, rate)
redis.call('zadd', permitsName, ARGV[2], struct.pack('Bc0I', string.len(ARGV[3]), ARGV[3], ARGV[1]))
redis.call('decrby', valueName, ARGV[1])
res = nil
end
-- 处理TTL设置
local ttl = redis.call('pttl', KEYS[1])
if ttl > 0 then
redis.call('pexpire', valueName, ttl)
redis.call('pexpire', permitsName, ttl)
end
return resAnswered By Claude：
redis.call('zadd', permitsName, ARGV[2], struct.pack('Bc0I', string.len(ARGV[3]), ARGV[3], ARGV[1]));这里将三个值打包成一个二进制字符串，
格式字符串 'Bc0I'：
B：无符号字节（1字节），存储 random 字符串的长度
c0：以 null 结尾的字符串，存储 random 值本身
I：无符号整数（4字节），存储许可数量
实际参数：
- string.len(ARGV[3])：random 字符串的长度
- ARGV[3]：random 字符串（客户端标识）
- ARGV[1]：请求的许可数量
-- 示例： -- 假设 random = "abc123", permits = 5 -- pack 后的结果类似于： -- [6][a][b][c][1][2][3][\0][0][0][0][5] -- ^ ^----- random -----^ ^- permits -^ -- | null -- length
RRateLimiter#availablePermits 部分源码：
@Override
public RFuture<Long> availablePermitsAsync() {
return commandExecutor.evalWriteAsync(getRawName(), LongCodec.INSTANCE, RedisCommands.EVAL_LONG,
"local rate = redis.call('hget', KEYS[1], 'rate');"
+ "local interval = redis.call('hget', KEYS[1], 'interval');"
+ "local type = redis.call('hget', KEYS[1], 'type');"
+ "assert(rate ~= false and interval ~= false and type ~= false, 'RateLimiter is not initialized')"
+ "local valueName = KEYS[2];"
+ "local permitsName = KEYS[4];"
+ "if type == '1' then "
+ "valueName = KEYS[3];"
+ "permitsName = KEYS[5];"
+ "end;"
+ "local currentValue = redis.call('get', valueName); "
+ "if currentValue == false then "
+ "redis.call('set', valueName, rate); "
+ "return rate; "
+ "else "
+ "local expiredValues = redis.call('zrangebyscore', permitsName, 0, tonumber(ARGV[1]) - interval); "
+ "local released = 0; "
+ "for i, v in ipairs(expiredValues) do "
+ "local random, permits = struct.unpack('Bc0I', v);"
+ "released = released + permits;"
+ "end; "
+ "if released > 0 then "
+ "redis.call('zremrangebyscore', permitsName, 0, tonumber(ARGV[1]) - interval); "
+ "currentValue = tonumber(currentValue) + released; "
+ "redis.call('set', valueName, currentValue);"
+ "end;"
+ "return currentValue; "
+ "end;",
Arrays.asList(getRawName(), getValueName(), getClientValueName(), getPermitsName(), getClientPermitsName()),
System.currentTimeMillis());
}
